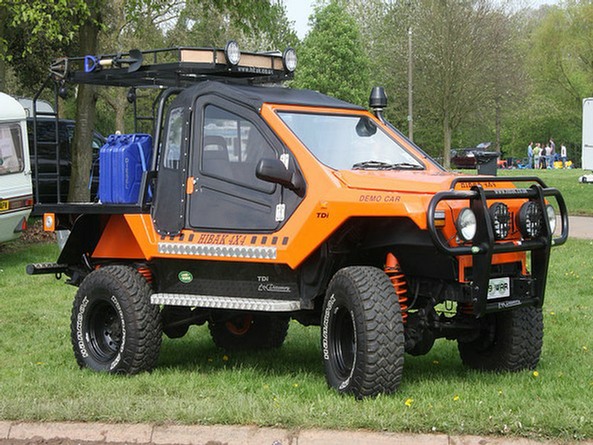

Hibak 4x4 A 2 Seater  Pickup

Engine

 Rover V8, 350 Chevrolet and various Diesel options are available.


Transmission

Manual or Automatic with permanent four wheel drive, two speed transfer gearbox. Centre manually operated diff lock or viscous coupling.


Suspension

Front live axle with coil springs, radius arms and panhard rod, double acting telescopic shock absorbers Rear live axle with coil springs.


Brakes

Servo assisted, All round discs, dual circuit 4 piston front calipers, 2 piston rear calipers

Tyres

 33 x 12.5 x 15  All terrain or mud pattern

Wheels

 8 x 15 or 10 x 15  Steel or Alloy

Donor vehicle

Range Rover or Land Rover Discovery


Basic kit contents

Body shell and bonnet, gel coat coloured finish.

Roll cage assembly, Side frames, all necessary brackets, nuts and bolt pack, rear loading tray, build manual.

Roll cage complete 4 earth mounts for all electrics and floor supports on side frames.

Standard colours: Blue, Black, White, Red, Yellow, Green.


Hibak 4x4

Visitors are by appointment only.

Telephone:  01509 413 495

Mobile:         07979 812 693

E-mail: tory@dakar4x4.me.uk

Weight

Width

Length

Height

Wheelbase

Track Width

Ground Clearance

1510kg

1810mm

4520mm

1960mm

2540mm

1590mm

280mm

-

-

-

-

-

-

-


All dimensions and measurements are for standard vehicle without wheel arch extensions and fitted with 33 x 12.5 x 15" tyres on 8" inch wheel rims.
